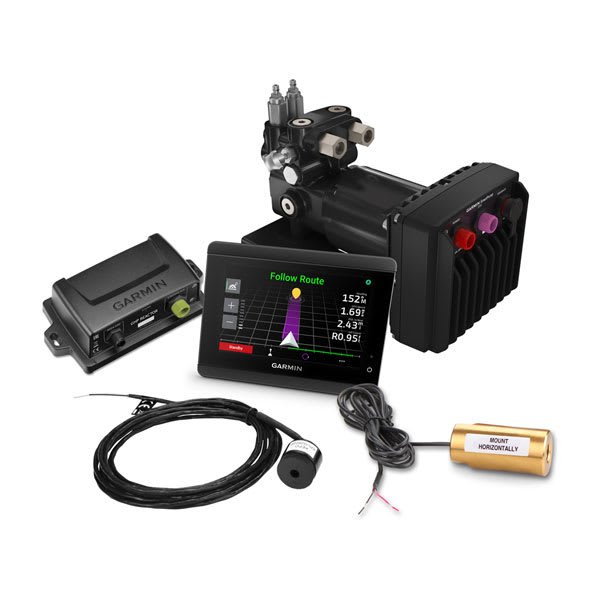

Reactor™ 40 Hydraulic Corepack with SmartPump v2

CCU Specifications

• Dimensions: 3 19/32″ diameter (91.4 mm)
• Weight: 5.6 oz (159 g)
• Temperature range: From 5°F to 131°F (from -15°C to 55°C)
• Case material: Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards
• CCU cable length: 9.5 ft (3 m)
• NMEA 2000 power input: 9-16 V
• NMEA 2000 LEN: 3 (150 mA)

Buzzer/Alarm Specifications

• Dimensions (L x Diameter): 29/32″ x 1″ (23 mm x 25 mm)
• Weight: 2.4 oz (68 g)
• Temperature range: from 5°F to 131°F (from -15°C to 55°C)
• Cable length: 10 ft (3.0 m)

• Dimensions (W x H x D): 7.5″ x 7.75″ x 9.625″ (19 x 19.7 x 24.4 cm)
• Weight: 16.5 lbs (7.5 kg)
• Temperature range: From 5°F to 131°F (from -15°C to 55°C)
• Material: Electronics Control Unit (ECU) – fully gasketed, aluminium alloy; bracket – carbon steel; manifold – aluminium alloy; motor – aluminium alloy
• Power cable length: 9 ft (2.7 m)
• Power input: 11.5-30 Vdc
• Fuse: 40 A, blade-type
• Main power usage: standby – less than 1 A; engaged – 5-10 A; peak – 34 A
• Flow rate: Configurable from 0 to 2.4 L per minute
• Compatible with steering cylinder sizes from 4-24 cu in; 7 second lock to lock up to 17 cu in
